Anonymous

rear discs brakes

The all purpose forum for any TR7/8 related topics.
Post Reply
V8Wedgehead
Swagester
Posts: 971
Joined: 27 May 2008 22:30
Location: USA
Contact:
Contact V8Wedgehead

Postby V8Wedgehead » 25 Jan 2009 12:42

The drum is actually thicker than the rotor on the hub mounting area, so the rim will come inward.

Michael
1980 TR8 FHC/Works Rally Project
If it is broken then fix it....if it is not then make it faster!"
Top
tr8coupe
Swagester
Posts: 658
Joined: 19 Apr 2004 14:21
Location: United Kingdom
Contact:
Contact tr8coupe

Postby tr8coupe » 25 Jan 2009 13:57

[:D]proper brakes on my car A&P rally ones[:D]



BMW Z1 ( sold)
Westfield sport carbon (sold)
Eurosport x1/9 turbo (sold)
TR8 coupe
TR7 v8 monster on 245 tyres all round (sold)
TVR VIXEN
Image[url][/url]
Top
Odd
TRiffic
Posts: 1969
Joined: 19 Oct 2007 08:49
Location: Sweden
Contact:
Contact Odd

Postby Odd » 25 Jan 2009 16:45

Why so huuuge pictures TR8Coupe?
That picture is 2816*1580 pixels @ 180 ppi ending in a monstrous 1.5 MegaBytes!
It takes forewer to download for the more bandwith impared among us!
(And your sig file picture is just as bad! Clogging up the bandwith...)

It <u>should have been</u> no more than 850*478 @ 72ppi = 100 KiloBytes:

and better yet, if you had edited out the unimportant parts it would have been just 80 kB:

The edited ones load in no time! And are just as informative!
Top
tr8coupe
Swagester
Posts: 658
Joined: 19 Apr 2004 14:21
Location: United Kingdom
Contact:
Contact tr8coupe

Postby tr8coupe » 25 Jan 2009 17:13

[:D]sorry got a few probs[:D]

BMW Z1 ( sold)
Westfield sport carbon (sold)
Eurosport x1/9 turbo (sold)
TR8 coupe
TR7 v8 monster on 245 tyres all round (sold)
TVR VIXEN
Top
john 215
TRemendous
Posts: 6867
Joined: 03 Dec 2006 17:12
Location: United Kingdom
Contact:
Contact john 215

Postby john 215 » 25 Jan 2009 21:15

Hi,
Mocked up my version of rear disc conversion this afternoon, hope to fir it when i install 2.84:1 rear axle.






The biggest problem i can fore see will be the parking brake as need a cable to go to the rear before once again coming forward to meet up with the calipers (the calipers face towards the front of the car) Oh well thats the fun part of doing this sort of thing [:)]
Cheers John.

LIVE LIFE A QUARTER OF A MILE AT A TIME!
1979 3.5 FHC(STATUS PENDING!!)
1982 2.0 DHC NOW A 4.6,ON THE ROAD NOW KICKING AR5E !!!!
Read My Blog http://www.waringstowntr7s.co.uk/blogs/ ... hp/John215
Top
paul w
Wedgista
Posts: 1421
Joined: 12 Feb 2007 20:36
Location: United Kingdom
Contact:
Contact paul w

Postby paul w » 25 Jan 2009 22:20

Nice engineering solution with that simple bracket mounting the caliper
to axle john.My set up has a 'stepped'ali bracket.
Have you spoken to Steve and simon at S&S about hand brake cables?

See ya. Paul


Top
john 215
TRemendous
Posts: 6867
Joined: 03 Dec 2006 17:12
Location: United Kingdom
Contact:
Contact john 215

Postby john 215 » 25 Jan 2009 22:44

Hi Paul,

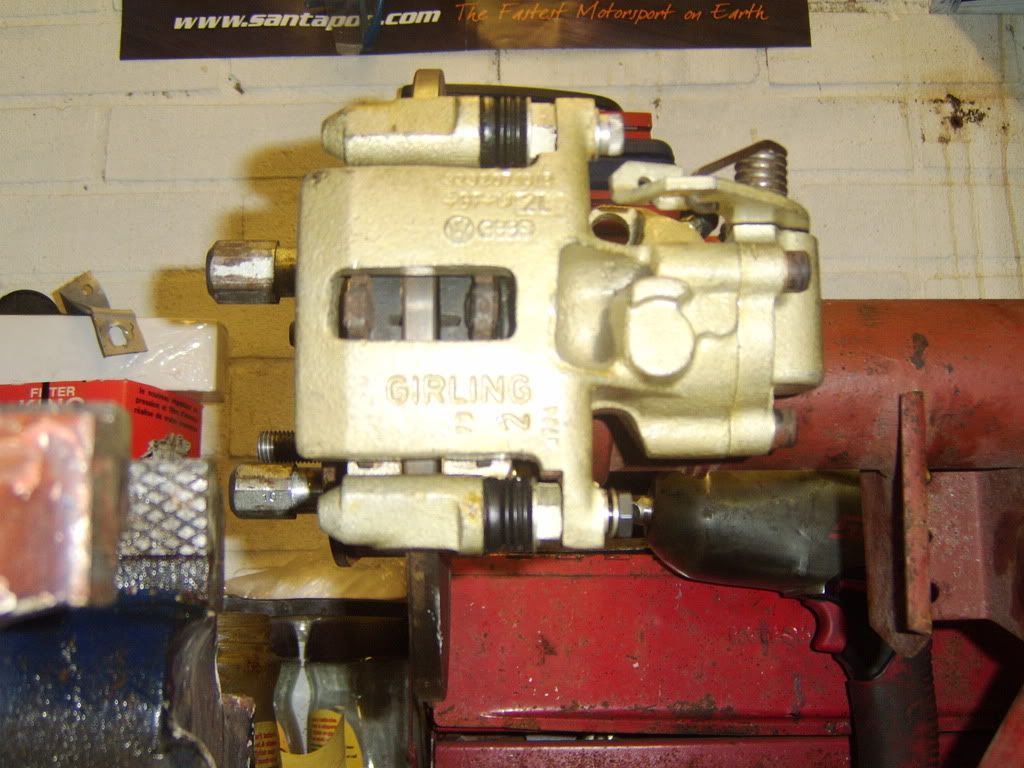

Hope to get up there in a week or two (prob next school half term, youngest wants to come with me! )They are going to install my 2.84:1 gear set. So will probaly leave the axle mocked up to see what they have or suggest. The calipers are VW i think prob MK 2 Golf, going to put a post on via a friend onto a VW forum with a picture or two to try and I.D them. Mocked it up to make sure wheels would fit them, didnt want to go to loads of work just to find the bl88dy wheels didnt fit!!!
Cheers john

LIVE LIFE A QUARTER OF A MILE AT A TIME!
1979 3.5 FHC(STATUS PENDING!!)
1982 2.0 DHC NOW A 4.6,ON THE ROAD NOW KICKING AR5E !!!!
Read My Blog http://www.waringstowntr7s.co.uk/blogs/ ... hp/John215
Top
Yoke
Wedge Pilot
Posts: 497
Joined: 26 Mar 2004 02:07
Location: Canada
Contact:
Contact Yoke

Postby Yoke » 27 Jan 2009 05:04

John would you mind posting info such as rotor size, thickness, and would you happen to have the specs on the adapter/spacer for the caliper?

Can't save them all but I am trying!!!
Top
john 215
TRemendous
Posts: 6867
Joined: 03 Dec 2006 17:12
Location: United Kingdom
Contact:
Contact john 215

Postby john 215 » 27 Jan 2009 17:42

Hi Yoke,
Will do at the W/E when i get back out the garage. The discs are Austin Maestro / Montego (front). The half shafts req turning down it a lathe to fit the I.D. of the discs. The adaptors are home made and are located using 3 of the 4 bearing retainer bolts, looking at Pauls only 2 are used. The worst bit seems to be the parking brake but will get there [:D]
Posted details about a year ago but 'the project' sort of got moth balled as these things do!!! Summer sort of got in the way!!
Cheers John

LIVE LIFE A QUARTER OF A MILE AT A TIME!
1979 3.5 FHC(STATUS PENDING!!)
1982 2.0 DHC NOW A 4.6,ON THE ROAD NOW KICKING AR5E !!!!
Read My Blog http://www.waringstowntr7s.co.uk/blogs/ ... hp/John215
Top
paul w
Wedgista
Posts: 1421
Joined: 12 Feb 2007 20:36
Location: United Kingdom
Contact:
Contact paul w

Postby paul w » 27 Jan 2009 23:06

Hey John,does the h/brake need to be cable operated to satisfy the mot?
Only Demon tweeks and Burtons catalogues have hydraulic kits to convert
your h/b with its own slave cylinder.Does this slave operate the cable
or is it another complete hydraulic cicuit?They also list brake line
locks-a lever valve that locks hydraulic pressure to the wheels.This
i think is aimed at motor sport,grid starts etc.Whats your thoughts
with your testers head on?

See ya. Paul


Top
richards
Rust Hunter
Posts: 235
Joined: 20 Oct 2006 22:25
Location: United Kingdom
Contact:
Contact richards

Postby richards » 28 Jan 2009 07:54

For the MOT the car will need an independent emergency brake, the method can be cable, hydraulic or whatever but it must not use the same system as the service brake. most hydraulic handbrakes use a master in the rear brake line to operate the service rear brakes and would therefore fail the MOT. Unofficial like, i have seen someone drape the cables and mock them up to look like they might work and then attatch them to the hydraulic h/brake lever so "both work at the same time sir" but you might need an understand MOT man, or get stevie wonder to do it.

Get a lifestyle
Get a TR7!

www.ttr7.co.uk
Top
john 215
TRemendous
Posts: 6867
Joined: 03 Dec 2006 17:12
Location: United Kingdom
Contact:
Contact john 215

Postby john 215 » 28 Jan 2009 18:51

Hi Paul,
As Richards says has to be independent system for MOT [:(] Was looking at the system fitted to the new X5 at work the other day, that has an electric motor that pulls the handbrake on.They have hanbrake shoes inside the discs so cables are there and just so happened i changed one a week or two back for a program issue, it has its own control unit integral to the motor unit, now IF that dont go back under warranty?!!! Wouldnt buy one at £750 [:0] The similar system fitted to 7 series give an efficency readings better than most front brakes!!! Could activate via a relay and micro swich under the handbrake lever!!
Or could just use Golf cables, that sounds easyer [;)]
Cheers John

LIVE LIFE A QUARTER OF A MILE AT A TIME!
1979 3.5 FHC(STATUS PENDING!!)
1982 2.0 DHC NOW A 4.6,ON THE ROAD NOW KICKING AR5E !!!!
Read My Blog http://www.waringstowntr7s.co.uk/blogs/ ... hp/John215
Top
jclay (RIP 2018)
TRemendous
Posts: 6027
Joined: 08 Jul 2006 17:13
Location: USA

Postby jclay (RIP 2018) » 28 Apr 2009 16:53

Here are the Bracket and Spacer Drawings for Michael's rear brake set-up:



Technical Site has also been updated.

jclay

[url="http://web.mac.com/jclaythompson/iWeb/Site/Welcome.html"]My Triumph Site[/url], [url="http://web.mac.com/jclaythompson/iWeb/Technical/Intro.html"]Technical Stuff[/url], [url="http://homepage.mac.com/WebObjects/FileSharing.woa/53/wo/HJMTK8gsojtwKleP.1/0.2.1.2.26.31.97.0.35.0.1.1.1?user=jclaythompson&fpath=Triumph_Articles&templatefn=FileSharing4.html"]Download Page[/url]
Top
Beans
TRemendous
Posts: 7822
Joined: 15 Mar 2006 19:29
Location: Netherlands
Contact:
Contact Beans

Postby Beans » 28 Apr 2009 21:28

Thx for that JClay, might come in handy somewhere in the future [;)]

<center>Image
<font color="blue"><i>1981 TR7 FHC Sprint (better known as 't Kreng)
1981 TR7 DHC (now completely dismantled)
Also a 1980 TR7 DHC, 1980 TR7 DHC FI, 1981 TR7 FHC</font id="blue">
<font color="red">http://tr7beans.blogspot.com/</i></font id="red"></center>
Top
john 215
TRemendous
Posts: 6867
Joined: 03 Dec 2006 17:12
Location: United Kingdom
Contact:
Contact john 215

Postby john 215 » 28 Apr 2009 21:28

Hi Jclay,
Excellent drawings, the spacer is that to go between the axle and the bearing retainer, all i done was cut down and shape a couple of old brake back plates.

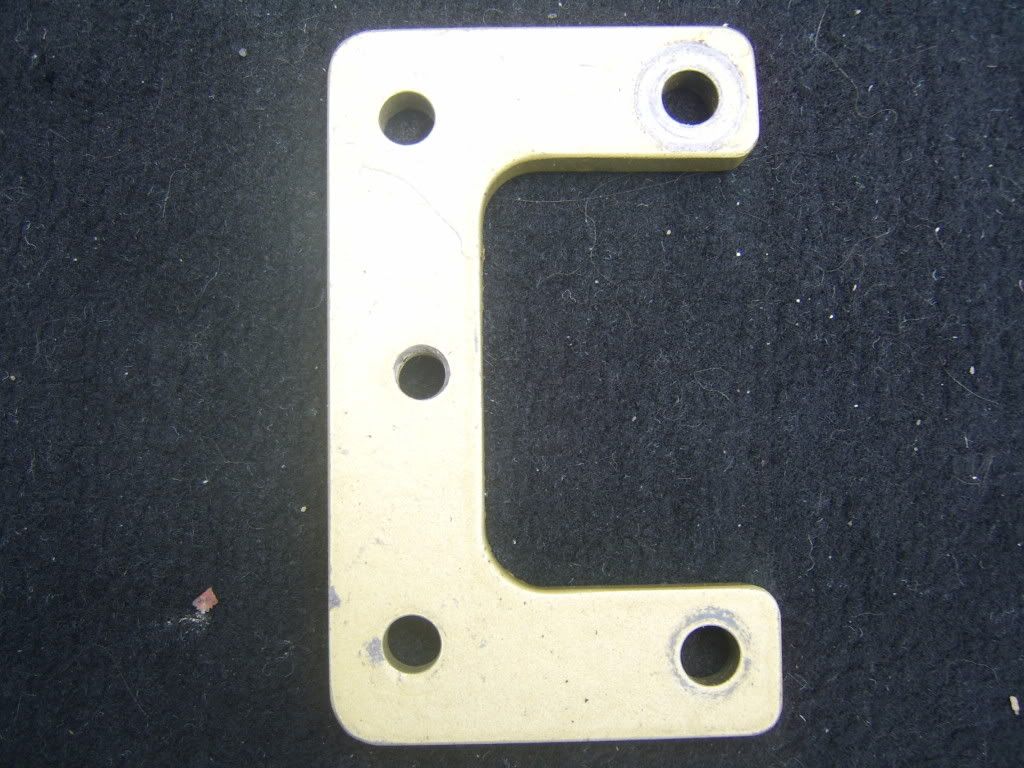

Mine use 3 bolts to secure to the axle as shown below,

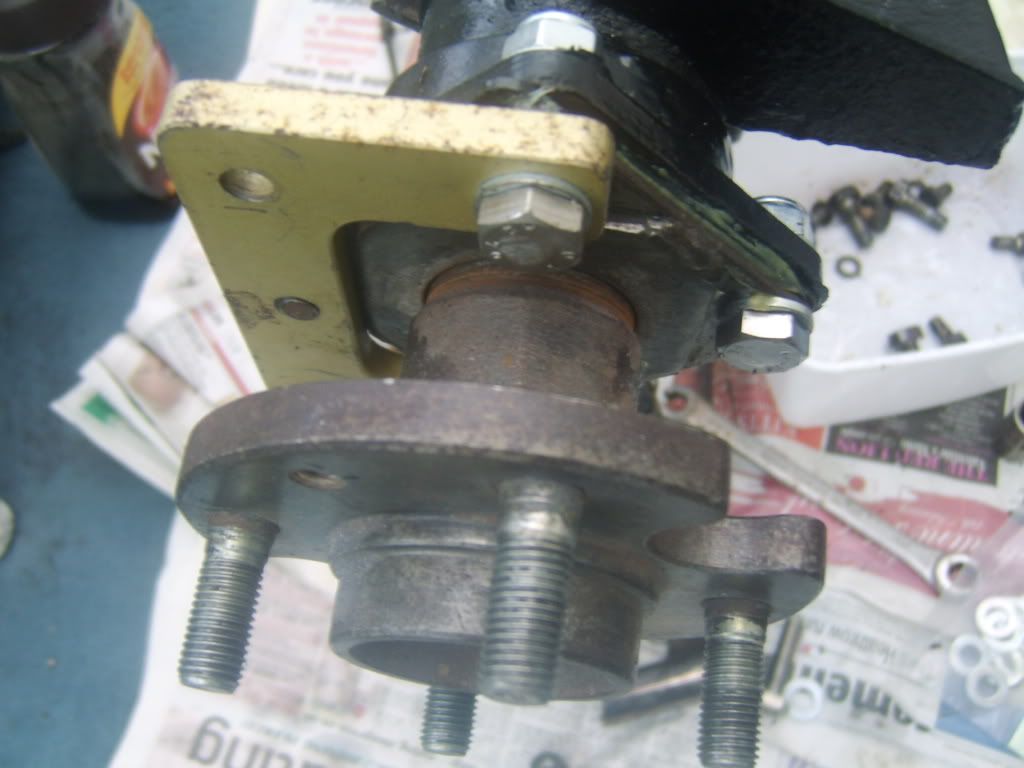

The centre hole and the outer two (at the end of the C if you like) mount onto the axle like so-

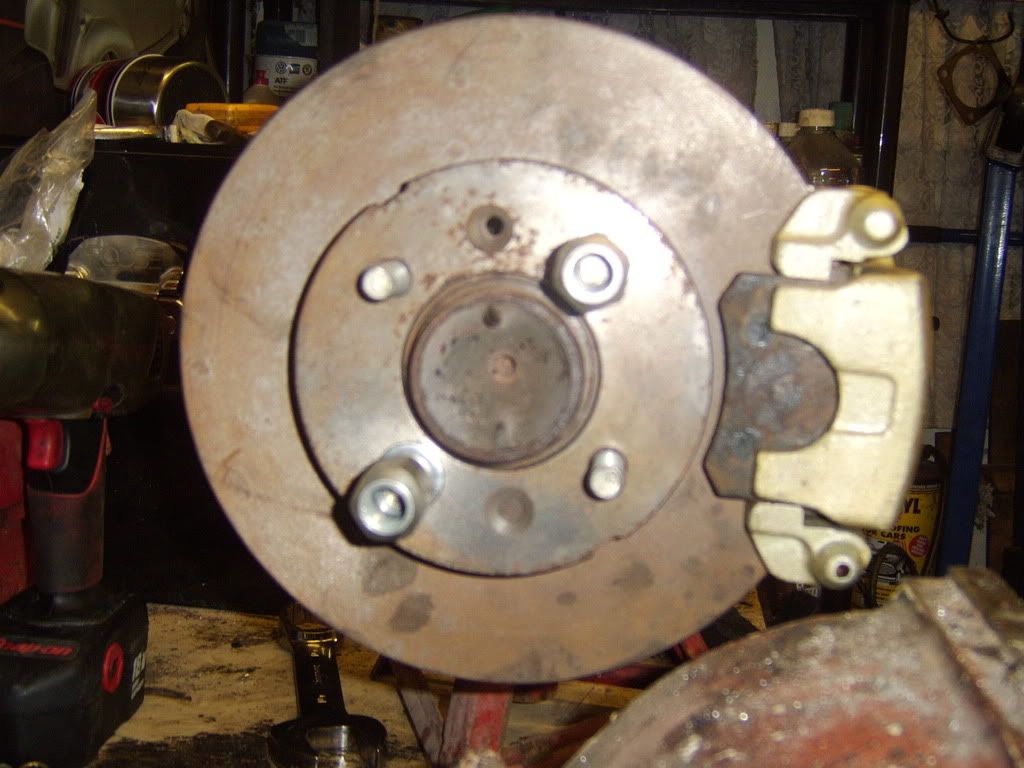

The caliper carrier then fits onto the remaining two holes

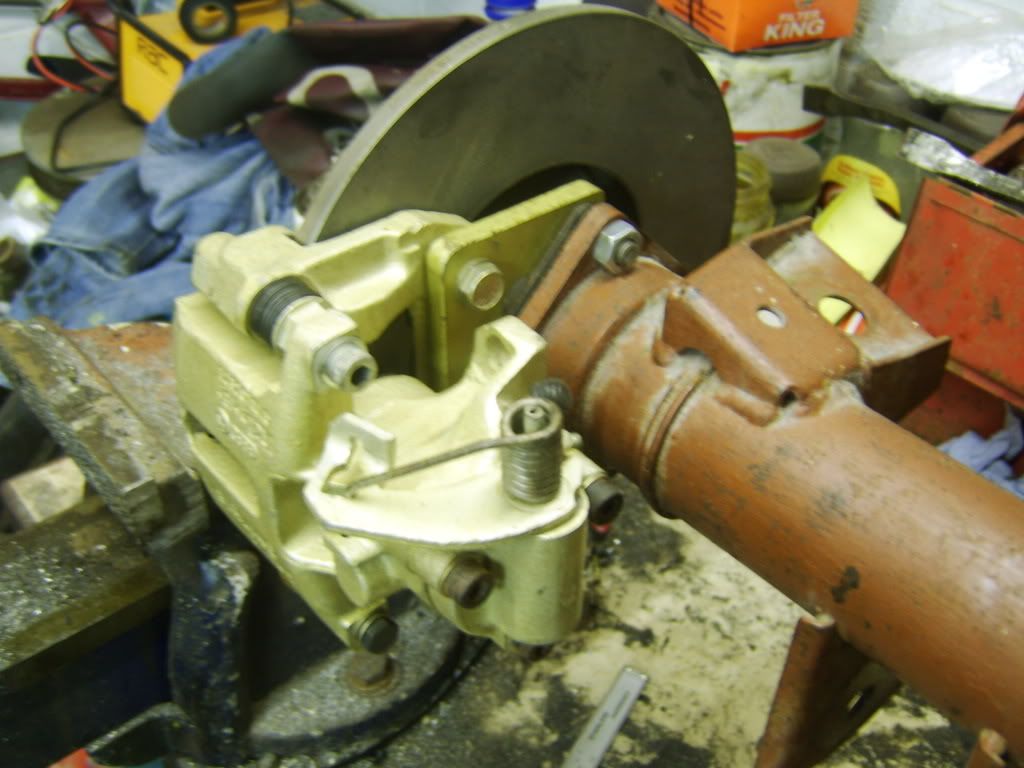

In the above picture also temp plumbed in a old master cylinder to check the operation of the calipers as they have been rebuilt.
Cheers John

LIVE LIFE A QUARTER OF A MILE AT A TIME!
1979 3.5 FHC(STATUS PENDING!!)
1982 2.0 DHC NOW A 4.6,ON THE ROAD NOW KICKING AR5E !!!!
Top
